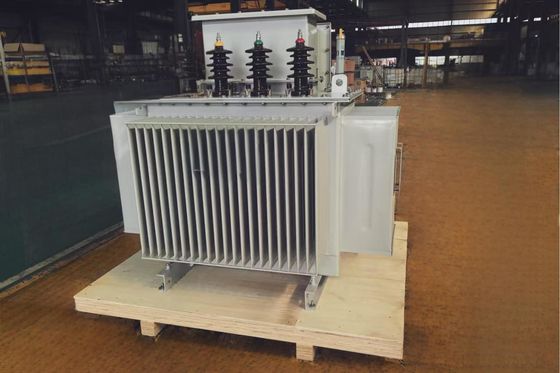

ONAN Cooling Oil Immersed Power Transformer S-M-750/13.8-0.48 for Ambient Temperature 28C and Long-lasting Performance

Product Description:

An Oil Immersed Distribution Transformer is a vital component in electrical power transmission systems, responsible for converting high-voltage electricity into lower-voltage levels suitable for distribution to homes and businesses. This particular product, with a rated capacity of 750KVA, is designed to meet the demands of medium to large-scale power distribution networks.

As an Oil Immersed Transformer, this product utilizes oil as a cooling and insulating medium to ensure efficient and reliable operation. The use of oil immersion allows for better heat dissipation, ensuring the transformer remains within safe operating temperatures even under heavy load conditions. This characteristic makes it ideal for continuous operation in various environments and load situations.

With an insulation class of A, this Oil Immersed Transformer is built to withstand high electrical stresses and ensure long-term reliability. The insulation class A signifies that the transformer can operate at elevated temperatures without compromising safety or performance, making it suitable for demanding applications where temperature fluctuations are common.

The YNd11 connection group of this transformer indicates a specific configuration of the winding connections, optimizing the transformer's efficiency and performance. This connection group is known for its ability to reduce losses and improve voltage regulation, ensuring stable power output even under varying load conditions. The YNd11 configuration is widely recognized for its reliability and effectiveness in power distribution systems.

Utilizing the ONAN cooling method, this Oil Immersed Transformer relies on natural convection to dissipate heat generated during operation. The ONAN (Oil Natural Air Natural) cooling method is efficient and cost-effective, requiring minimal maintenance while providing effective heat dissipation capabilities. This cooling method ensures that the transformer operates within safe temperature limits, extending its lifespan and enhancing overall performance.

Operating at a rated frequency of 60Hz, this Oil Immersed Distribution Transformer is designed to meet the standards and requirements of power distribution systems in regions where a 60Hz frequency is prevalent. The transformer's design and components are optimized to deliver stable and reliable performance at this frequency, ensuring seamless integration into existing power grids.

Features:

• Product Name: Oil Immersed Power Transformer
• Cooling Method: ONAN
• Rated Capacity: 750KVA
• Type: S-M-750/13.8-0.48
• Tapping Range: ±2x2.5%
• Connection Group: YNd11

Technical Parameters:

Applications:

The Oil Immersed Power Transformer, also known as the Oil Immersed Distribution Transformer, is a reliable and essential electrical equipment designed for various applications and scenarios. Manufactured by the renowned brand Oil-immersed transformer, this specific model number S-M-750/13.8-0.48 is a high-quality product originating from CHINA, ensuring top-notch performance and durability.

With its GB certification, this Oil Immersed Transformer is suitable for a wide range of usage scenarios. Its packaging details include a secure WOODEN PALLET, ensuring safe transportation and storage. The transformer has a rated capacity of 750KVA, making it ideal for medium to large-scale power distribution systems.

The Oil Immersed Transformer is designed to handle significant electrical loads, with a rated current of 31.4/902.1 A. Its rated frequency of 60Hz ensures compatibility with standard power grids. The Tapping range of ±2x2.5% allows for precise adjustments to match specific voltage requirements in different situations.

One of the key features of this transformer is its cooling method, ONAN, which stands for Oil Natural Air Natural. This cooling method is efficient and reliable, ensuring optimal performance even under heavy load conditions.

Due to its robust construction and reliable performance, the Oil Immersed Power Transformer is suitable for a variety of applications and scenarios. It can be used in industrial settings, commercial buildings, power plants, and utility substations to efficiently distribute electrical power.

Whether it's for upgrading existing power distribution systems or establishing new ones, the Oil Immersed Transformer offers a dependable solution. Its high-quality design, certification, and technical specifications make it a preferred choice for demanding electrical applications.

Customization:

Product Customization Services for the Oil Immersed Power Transformer:

Brand Name: Oil-immersed transformer

Model Number: S-M-750/13.8-0.48

Place of Origin: CHINA

Certification: GB

Packaging Details: WOODEN PALLET

Type: S-M-750/13.8-0.48

Oil grade: 25# Oil

Rated voltage: 13800/480 V

Rated capacity: 750KVA

Rated current: 31.4/902.1 A

Support and Services:

Our Oil Immersed Power Transformer product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to provide assistance with installation, maintenance, troubleshooting, and any other technical issues that may arise.

We offer training programs to familiarize customers with the operation and maintenance of the transformer, as well as regular maintenance services to keep the equipment in top condition. Our technical support team is dedicated to providing timely and effective solutions to any product-related concerns.

Additionally, we offer customization services to tailor the transformer to specific requirements, as well as consulting services to help customers optimize their power distribution systems. Our goal is to ensure that our Oil Immersed Power Transformer product meets and exceeds customer expectations in terms of performance, reliability, and efficiency.

Packing and Shipping:

Product Packaging for Oil Immersed Power Transformer:

The oil immersed power transformer will be securely packed in a wooden crate to ensure safe transportation. The transformer will be cushioned with appropriate padding to prevent any damage during shipping.

Shipping Information:

The oil immersed power transformer will be shipped via a reputable transportation company that specializes in handling sensitive and heavy equipment. The shipping process will be closely monitored to ensure the safe and timely delivery of the product to the designated destination.
