Rated current 2061375 A Cast Resin Indoor Transformers engineered to deliver power at ambient temperature 30 degrees Celsius

Product Description:

The Cast Resin Dry Type Transformer is an advanced electrical device designed to provide reliable voltage transformation in various industrial and commercial applications. Engineered with high-quality materials and innovative manufacturing techniques, this transformer belongs to the category of Cast Resin Low Voltage Transformers, which are renowned for their exceptional performance, safety, and durability. Its design focuses on offering efficient energy conversion while ensuring minimal maintenance and enhanced operational safety, making it a preferred choice for indoor installations.

This particular model features a connection symbol of I;io, which indicates its specific connection configuration, allowing for versatile integration within electrical systems. The connection type supports ease of installation and ensures compatibility with a broad range of electrical networks. With a rated current of 2.06/137.5 A, the transformer is capable of handling significant load currents, providing stable and consistent power supply to connected equipment. This rated current ensures that the transformer can operate efficiently under typical load conditions without overheating or performance degradation.

Designed to operate in environments with an ambient temperature of up to 30℃, the Cast Resin Dry Type Transformer maintains optimal performance even in moderately warm conditions. This temperature rating aligns with standard indoor environmental parameters, making the transformer ideally suited for indoor applications. The cooling method employed is AN (Air Natural), which means the transformer dissipates heat naturally through air circulation without the need for additional cooling equipment. This natural cooling approach enhances the transformer's reliability and reduces operational costs related to cooling systems.

As a single-phase transformer, it is specifically designed to supply single-phase power systems, which are commonly used in residential, commercial, and light industrial settings. Single-phase transformers are essential for applications where three-phase power is not required, providing efficient voltage regulation and power distribution. The single-phase design simplifies the electrical connections and reduces the overall footprint of the transformer, making it suitable for installation in confined indoor spaces.

The use of cast resin insulation technology is a standout feature of this transformer. Unlike traditional oil-filled transformers, Cast Resin Indoor Transformers utilize epoxy resin to encapsulate the windings, providing superior insulation and protection against moisture, dust, and corrosive agents. This construction enhances the transformer's safety by eliminating the risk of oil leaks and fire hazards, which are common concerns with oil-immersed transformers. Additionally, the cast resin encapsulation improves the mechanical strength of the windings, allowing the transformer to withstand short circuits and mechanical stresses more effectively.

Cast Resin Low Voltage Transformers are particularly favored in environments where fire safety and environmental protection are critical. Their non-flammable insulation material and dry-type design comply with stringent safety regulations, making them suitable for installation in public buildings, hospitals, schools, and other sensitive locations. Moreover, these transformers require minimal maintenance due to their robust construction and lack of liquid coolant, reducing downtime and operational expenses.

In summary, this Cast Resin Dry Type Transformer combines the benefits of modern cast resin insulation technology with practical design features tailored for indoor use. Its connection symbol I;io, rated current of 2.06/137.5 A, ambient temperature rating of 30℃, natural air cooling method, and single-phase configuration make it a versatile and dependable solution for low voltage power distribution. Whether deployed in commercial buildings, industrial facilities, or residential complexes, this Cast Resin Indoor Transformer delivers efficient, safe, and eco-friendly performance, embodying the advanced capabilities of Cast Resin Low Voltage Transformers in today’s electrical infrastructure.

Features:

• Product Name: Cast Resin Dry Type Transformer
• Frequency: 60 Hz
• Cooling Method: AN (Air Natural)
• Rated Capacity: 33 KVA
• Protection Level: IP00
• Ambient Temperature: 30℃
• High-quality Cast Resin Low Voltage Transformers
• Durable and reliable Cast Resin Type Transformers design
• Ideal for various electrical applications requiring Cast Resin Type Transformers

Technical Parameters:

Applications:

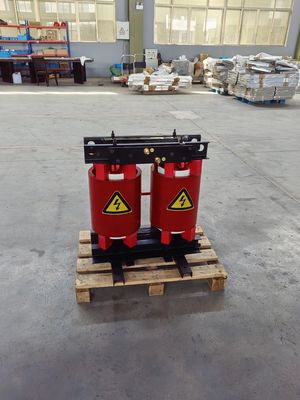

The Cast Resin Dry-Type Transformer, model number DC9-33/16-0.24, is a highly reliable and efficient electrical device designed for a wide range of application occasions and scenarios. Manufactured in China and certified under IEC and GB standards, this transformer is ideal for indoor installations where safety, durability, and performance are critical. As a member of the Cast Resin Indoor Transformers family, it offers superior insulation and protection, making it suitable for environments with ambient temperatures up to 30℃.

One of the primary application occasions for the Cast Resin Indoor Transformers is in commercial and industrial buildings where stable and efficient power distribution is essential. These transformers cater to facilities such as office complexes, shopping malls, hospitals, and manufacturing plants, ensuring smooth operation of electrical equipment by providing a rated capacity of 33 KVA. Their robust cast resin insulation and dry-type construction make them highly resistant to moisture, dust, and environmental contaminants, which is crucial for indoor settings.

Cast Resin Type Transformers like the DC9-33/16-0.24 model are also extensively used in renewable energy installations, including solar and wind power plants. Their eco-friendly design, which avoids the use of oil as a coolant, aligns with sustainable energy principles and reduces fire hazards. The cooling method, AN (air natural), ensures efficient heat dissipation without the need for additional cooling systems, simplifying maintenance and enhancing reliability.

Another common scenario for deploying Cast Resin Indoor Transformers involves data centers and telecommunications facilities. These environments demand uninterrupted power supply and minimal electromagnetic interference, both of which are effectively managed by the dry-type transformer design. Furthermore, the transformer’s IP00 protection rating indicates it is designed for clean, dry indoor environments, enhancing its lifespan and operational safety.

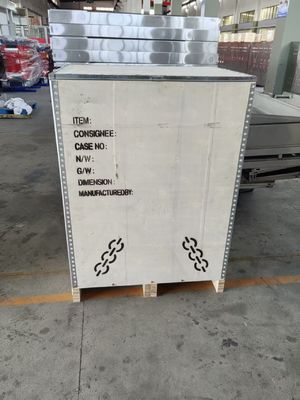

With a minimum order quantity of one set, packaged securely in a wooden case to prevent damage during transit, these transformers are available with flexible payment terms including FOB, EXW, and CIF. The delivery time is typically 30 days per set, and the supply ability stands at 100 units per year, making it a reliable choice for both small-scale and large-scale projects.

In summary, the Cast Resin Dry-Type Transformer DC9-33/16-0.24 is an excellent solution for indoor power distribution needs across various sectors. Its certification, cooling method, and design attributes make it especially suited for commercial buildings, industrial plants, renewable energy projects, and critical infrastructure requiring safe, efficient, and environmentally friendly power transformation.

Customization:

Our Cast Resin Dry-Type Transformer model DC9-33/16-0.24 is a high-quality product originating from CHINA, certified by IEC and GB standards. We specialize in providing customized solutions for Cast Resin Indoor Transformers to meet your specific needs.

This Cast Resin Type Transformer features a robust design with an insulation class F and protection rating of IP00, ensuring reliable performance in ambient temperatures up to 30℃. The connection symbol is I;io, and the secondary voltage is 240 V, making it suitable for various industrial applications.

We offer flexible customization options including packaging in sturdy wooden cases to ensure safe delivery. Our minimum order quantity is 1 set, with a supply ability of 100 units per year. Delivery time is typically 30 days per set, and pricing is to be confirmed based on your requirements.

Payment terms available include FOB, EXW, CIF, and others to facilitate smooth transactions. Trust our expertise in Cast Resin Type Transformers to provide you with reliable and efficient power solutions tailored to your specifications.

Support and Services:

Our Cast Resin Dry Type Transformers are designed to provide reliable and efficient performance in a variety of industrial and commercial applications. To ensure optimal operation and longevity of your transformer, we offer comprehensive technical support and services.

Our technical support team is available to assist with installation guidance, troubleshooting, and maintenance procedures. We provide detailed manuals and documentation to help you understand the correct handling and operational requirements of the transformer.

Regular maintenance services include inspection of insulation resistance, checking for any signs of overheating or physical damage, and ensuring that all connections are secure. We recommend periodic testing to verify the transformer's performance and to detect any potential issues early.

In addition to maintenance, we offer repair services carried out by skilled technicians using genuine replacement parts to restore your transformer to its original specifications. Our goal is to minimize downtime and extend the service life of your equipment.

For customized support, our engineering team can provide solutions tailored to your specific needs, including modifications and upgrades to meet evolving operational demands.

Trust our expertise to keep your Cast Resin Dry Type Transformer operating safely and efficiently, backed by quality service and support throughout the product lifecycle.
